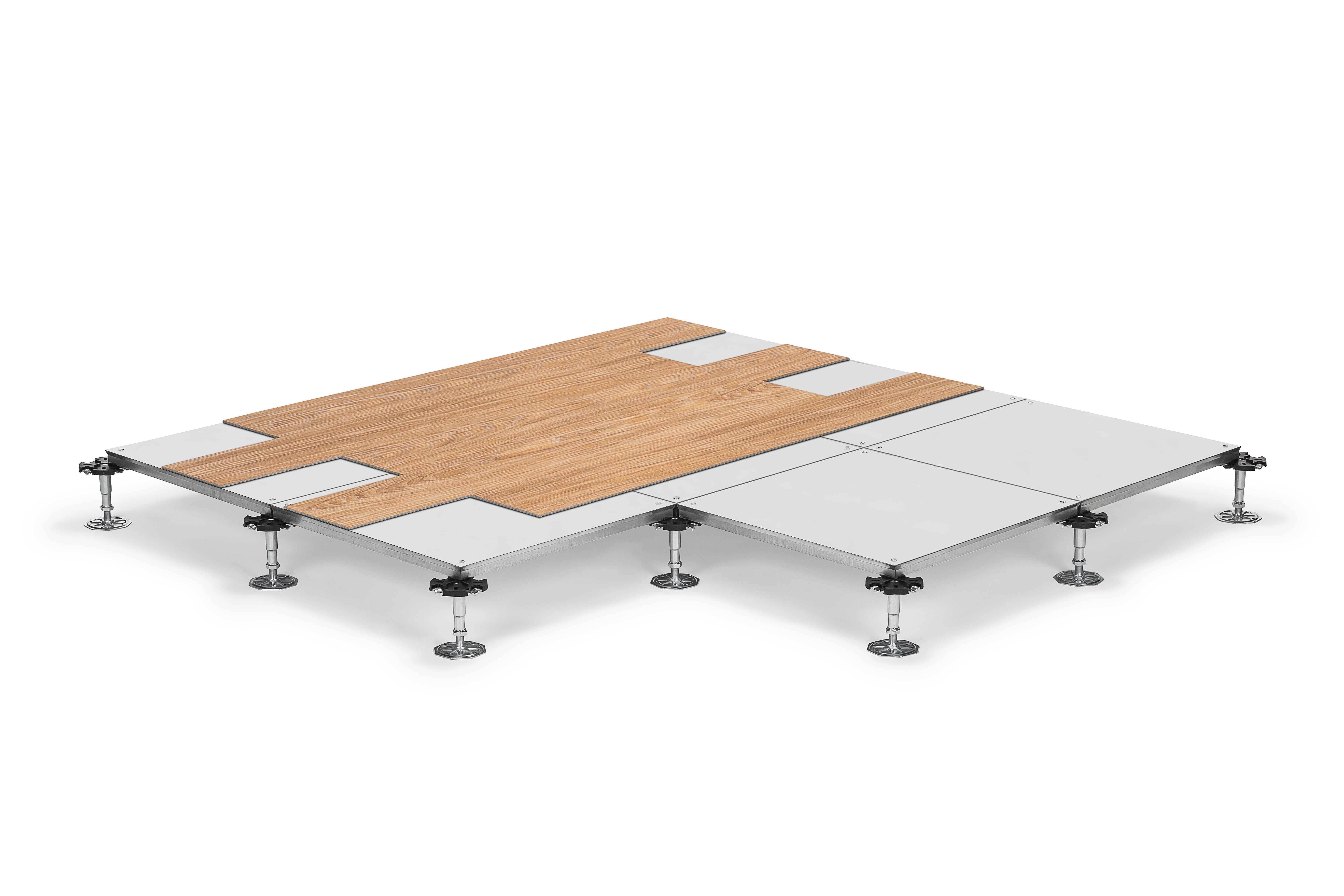

Steelbox Panel

High-density monoblock calcium sulfate core is used in EN-S panels with Calcium Sulphate Core. In the encapsulated panel, four sides of the inner filling material are covered with galvanized steel. With this method, the fire resistance and carrying capacity of the panel is increased.

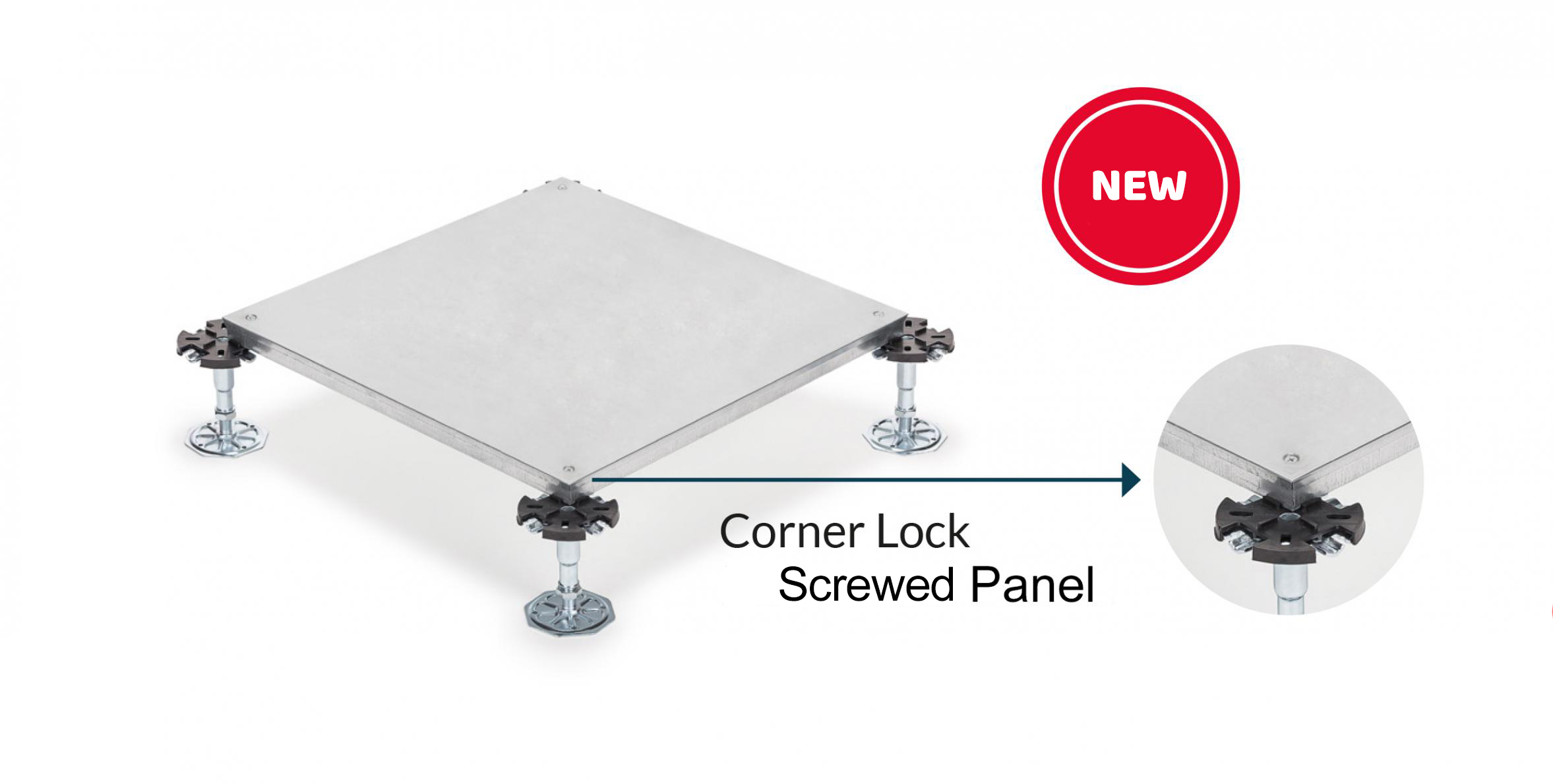

In the EN-S CL Corner Lock panels with Calcium Sulphate Core, unlike the standard EN-S encapsulated panel, a more rigid system is obtained by screwing to the legs from 4 corners.

Usage areas;

Office, education, bank, store/shopping mall, airport, accommodation, data center, call center, hospital/polyclinic, congress and conference halls, fairgrounds, studios

N Capsule Panel
Corner Lock Panel

N Capsule Panel Click For Technical Information!

Onto EN-Ca28
Preto EN-Ca28
Onto EN-Ca28
Dimensions 600 x 600 mm
Inner Filling 1580 kg/m3, Monoblock Calcium Sulphate
Top Coating 0,5 mm Galvanized Steel
Bottom Coating 0,5 mm Galvanized Steel
Edges 0,37 mm Galvanized Steel
System Weight 61,4 kg
EN 128125
Foot Vertical Load Capacity 23 kN
Maximum Load 12,1 kN
Working Load 4 kN
Load Class 6A
CISCA
Point Load 6 kN
Distributed Load 30 kN/m2
Preto EN-Ca28
Dimensions 600 x 600 mm
Inner Filling 28 mm calcium sulfate
Top Coating 0.5 mm galvanized steel
Bottom Coating 0.5 mm galvanized steel
Edges 0,37 mm Galvanized Steel
System Weight 43,3 kg
EN 128125
Foot Vertical Load Capacity 23 kN
Maximum Load 6,3 kN
Working Load 2,1 kN
Load Class 2A
CISCA
Point Load 2,9 kN
Distributed Load 10 kN/m2

Corner Lock Panel Click For Technical Information!

Onto EN-CaCL28
Preto EN-CaCL28
Onto EN-CaCL28
Dimensions 600 x 600 mm
Inner Filling 1580kg/m3, 28 mm Monoblok Calsium Sulphate
Top Coating 0,5 mm Galvenized Steel
Bottom Coating 0,5 mm Galvenized Steel
Edges 0,5 mm Galvenized Steel
System Weight 61,4 kg
EN 128125
Foot Vertical Load Capacity 23 kN
Maximum Load 10,4 kN
Working Load 3,5 kN
Load Class 5A
CISCA
Point Load 4,7 kN
Distributed Load 23 kN/m2
Preto EN-CaCL28
Dimensions 600 x 600 mm
Inner Filling 28 mm Calcium Sulphate
Top Coating 0,5 mm Galvanized Steel
Bottom Coating 0,5 mm Galvanized Steel
Edges 0,5 mm Galvanized Steel
System Weight 43,3 kg
EN 128125
Foot Vertical Load Capacity 23 kN
Maximum Load 6,3 kN
Working Load 2,1 kN
Load Class 2A
CISCA
Point Load 2,9 kN
Distributed Load 10 kN/m2

Get Offer

What are the advantages?

Who Prefer?

Onto Raised Floor Systems are heavily preferred in enterprises where there is very intense wiring, ventilation and water installation occupy floor space. It is also preferred in large office areas because it eliminates the dependence on the installation in the space layout plan and provides space saving.

Who Prefer?

Onto Raised Floor Systems are heavily preferred in enterprises where there is very intense wiring, ventilation and water installation occupy floor space. It is also preferred in large office areas because it eliminates the dependence on the installation in the space layout plan and provides space saving.
